Infinity MT500 Chocolate Melting Tank
£14,600.00excl. VAT
“I now have 2 Infinity AXs, 2 AMLs and a brand new MT500 from KeyChoc. I think they are all excellent machines and perform really well with my chocolate. They are easy to use, and easy to clean, and are well built. I can leave my team to run them while I am elsewhere safe in the knowledge that there isn’t much that can go wrong with them.
What I particularly value about Keychoc, though, is the level of service they provide. My chocolate is a brand new dairy-free and low sugar recipe and is not always the easiest to work with but the AX handles it perfectly! If there is ever a problem, a KeyChoc engineer is usually able to respond within a day or two to get me back up and running. In my business, that’s not only invaluable but essential.
The guys at Keychoc have all been amazing and really helpful with advice and suggestions, and I am delighted to be working with them.”

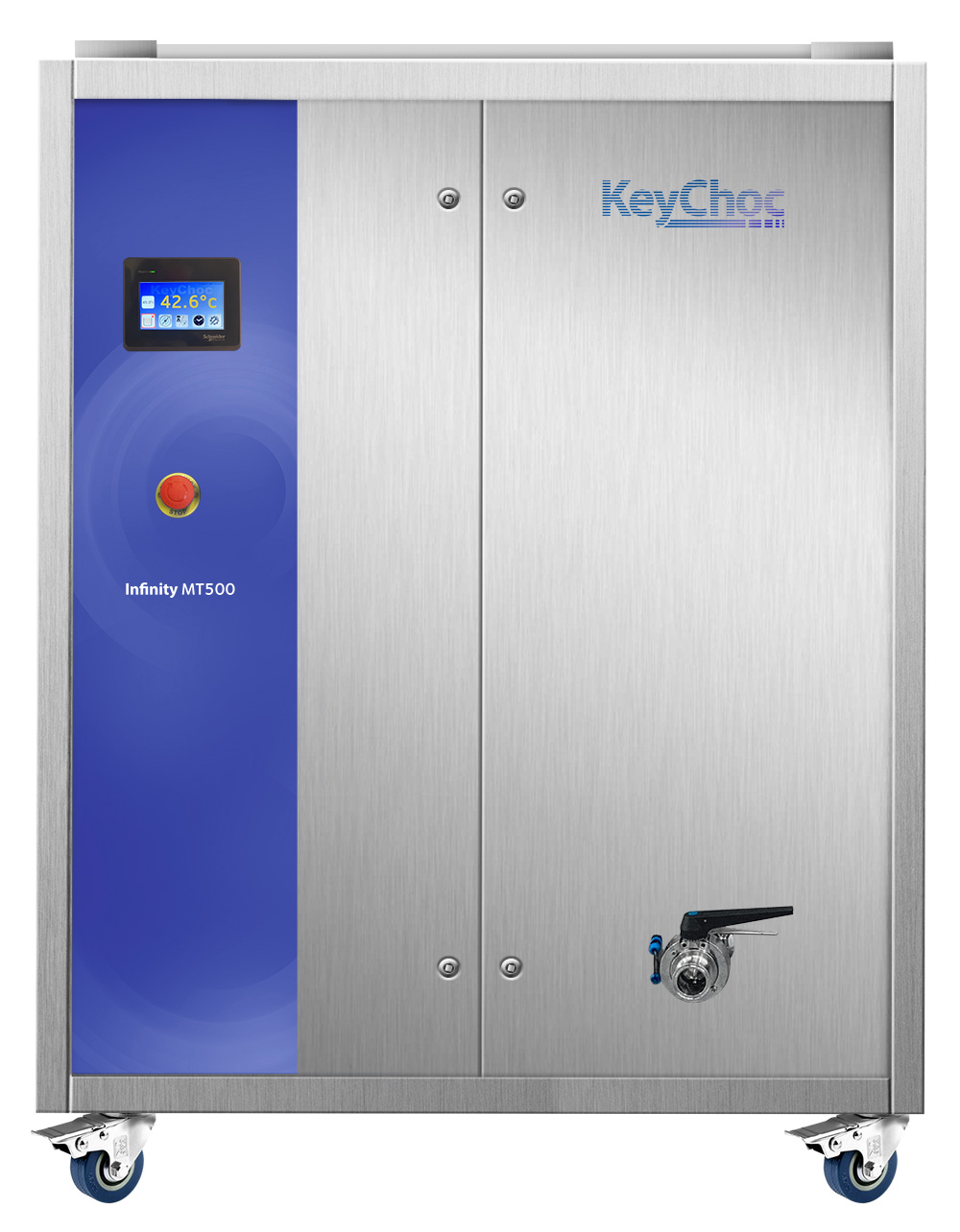

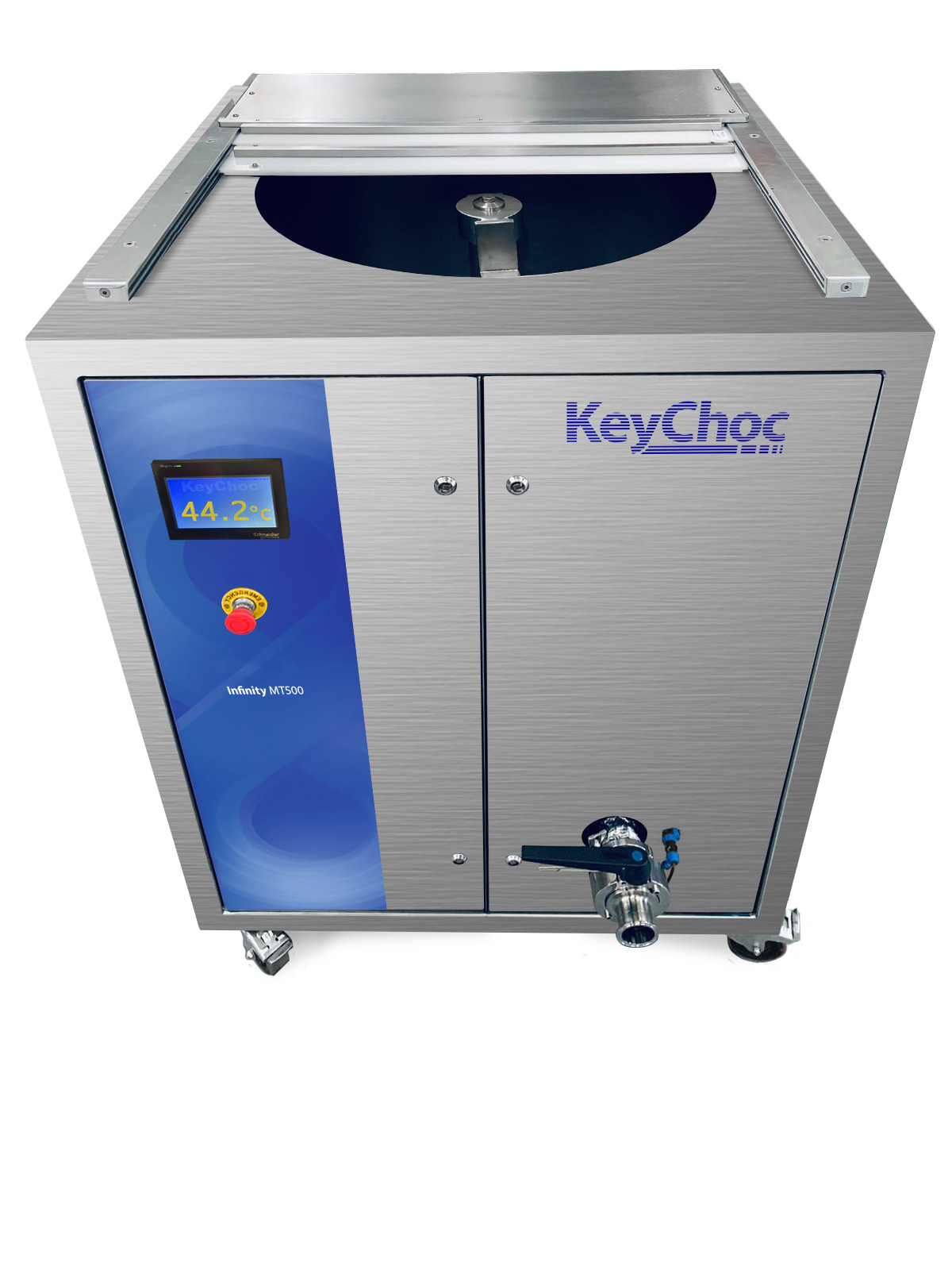

The Infinity MT500 chocolate melting tank is a temperature-controlled, fully jacketed, melting tank with a 500kg capacity. Ideal for a wide variety of food products including everything from chocolate and other fat-based masses to wax.
Here are just some of the features and advantages of Keychoc Melting Tanks:
Design Features
- Sturdy, stable, heavy-duty construction suitable for industrial use
- All stainless steel construction; contact parts 304 S/S and frame from 303 S/S
- Special design, shatterproof castors with no ‘flat spotting’
- 50mm, heated butterfly discharge valve, located approx. 400mm above ground level
- Bottom-mounted motor for better hygiene
- Gate-type agitator
For Ease of Operation
- PLC-driven with full, simple, intuitive touchscreen control
- Simple snap-in connection for filling the water jacket
- Sliding lid enabling excellent access from above to the inside of the tank and easy removal of the stirrer for cleaning
- Eco mode for the stirrer, which enables it to be run intermittently to save energy costs
- 7 day programmable start timer
For Ease of Maintenance
- Easy key access to all sides of the tank housing for maintenance
- Non-immersion heaters means there’s no need to drain the water jacket to remove the heaters for maintenance
- Electrical controls by Schneider, which are easily available from local suppliers worldwide
- Designed to be conveniently lifted by forklift.
Also available with an optional, onboard, auger-driven pump and a separate high-level discharge spout. [See MT500-P]
All INFINITY Series machines, including the new INFINITY MT Series melting tanks are designed and manufactured in the UK.
- Tank Capacity: 500 Kgs (1100 lbs)
- Sturdy, stable construction on strong castors and designed to be easily lifted by forklift.
- All stainless steel construction; contact parts 304 S/S and frame from 303 S/S
- PLC-driven with full touchscreen controls
- Digital thermostatic temperature control
- Sliding lid enabling excellent access to inside of tank and easy removal of the stirrer for cleaning
- Electrical safety cut-out fitted to lid
- Gate-type agitator
- Non-immersion tube heaters for ease of maintenance
- 50mm heated butterfly discharge valve, located approx. 400mm above ground level
- Bottom-mounted motor for better hygiene
- Dimensions: (W) 1150 x (D) 1150 x (H) 1370 mm
- Power: 3 Phase Supply Required, 380-460V, 16A, 50-60Hz
- Heating: 2 x 2.2 kW heaters
- Stirrer Motor: 1.1 kW
- Made at KeyChoc, St. Helens, UK
